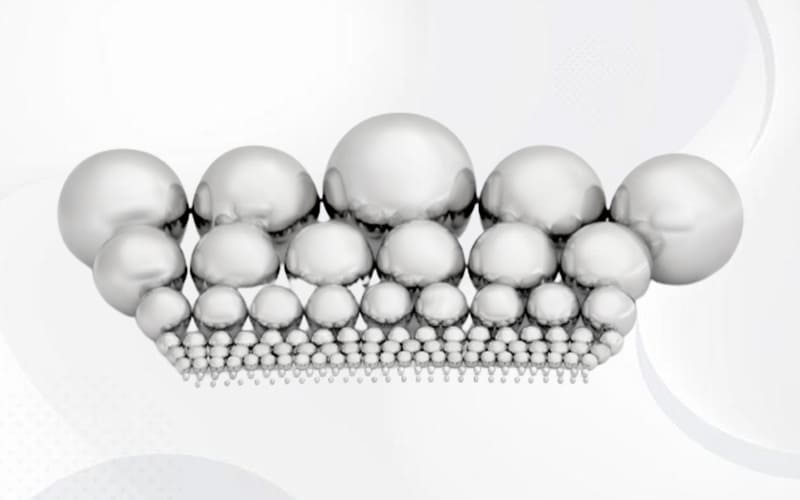

AISI 430 / 430F Stainless Steel Balls
Stainless Steel balls are ferritic and unhardened in nature, these balls show good mechanical and corrosion resistance features which are considered to be superior to the martensitic stainless steel. As a standard practice at the Tolia group all stainless steel balls are supplied in a passivated condition.
Applications :
- Cosmetic nail polish
- Cosmetic balls
- Heat Exchangers
- Ball for valves
- Sprayers
- Automotive Industry
Chemical composition
| Type | %C | %Si | %Mn | %P | %S | %Cr |
| 430 | 0.120 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00-18.00 |
| 430F | 0.120 max | 1.00 max | 1.25 max | 0.065 max | 0.150 min | 16.00-18.00 |
International Standards and material codes
| USA | GER | FRA | UK | RUS | CHN | JAP |
| 430 | 1.4016 | Z8C17 | 430S17 | 12KH17 | 1Cr17 | SUS 430 |
| 430F | 1.4104 | Z10CF17 | 441S29 | - | YCr17 | SUS 430 F |
Technical Properties
| Property | Type | U.o.M. | Values | U.o.M. | Values |
| Hardness | Mechanical | [HRC] | 75 - 95 | - | - |
| Ultimate tensile strength | Mechanical | [MPa] | 750 - 950 | [psix10^3] | 107 - 140 |
Size Range/Grade selection
| Product | Size Range | U.o.M. | Grade Capabilities |
| Balls | 3.00 mm to 76.20 mm | [mm] | GR.100 to GR.2000 as per any international standard. |
| Comparison Chart- Material Corrosion Resistance | |||||||||||||||||||
Material |
CORROSION RESISTANCE | ||||||||||||||||||
| Air | Water | Food | Liquor | Dilute Acid | Conc. Acid | Chemical | |||||||||||||
| Industrial Atmosphere | Salt Air | Wet Steam | Domestic Water | Sea Water | Food Product | Fruit & Veg. Juice | Dairy Product | Hot Sulfate | Dye | HCL | H2SO4 | HNO3 | Phosphoric | H2SO4 | HNO3 | Phosphoric | Ammonia | Alkaline Salt | |
| AISI-E-52100 | 3 | ← | 4 | 4 | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | 2 | 3 |
| AISI-420 | 2 | 4 | 1 | 1 | ← | 3 | 3 | 2 | ← | 3 | ← | ← | ← | ← | ← | ← | ← | 2 | 3 |
| AISI 420C | 2 | 4 | 1 | 1 | ← | 3 | 3 | 2 | ← | 3 | ← | ← | ← | ← | ← | ← | ← | 2 | 3 |
| AISI 440C | 2 | 3 | 2 | 2 | ← | 2 | 2 | 3 | ← | 4 | ← | ← | ← | ← | ← | ← | ← | 3 | 2 |
| AISI 304/302 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 1 | 4 | 2 | 2 | 2 | 2 | 😑 | 2 | 2 | 1 | 1 |
| AISI 316 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 4 | ← | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 2 |
| AISI 1085 | 3 | ← | 4 | 4 | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | ← | 2 | 3 |
1=Excellent 2 = Good 3 = Fair 4 = Poor
← Will not withstand corrosion
😑 Varies
* = satisfactory only over 75% concentration
-
